主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 發光輕觸開關 ? R596B ?

小型帶燈輕觸開關為集輕觸開關內置發光LED燈復合式開關，具有外觀絢麗色彩多樣化，可以符合波峰焊與回流焊，產品常規用于筆記本電腦，家電，電子電器控制按鈕功能。
帶燈輕觸開關R596B

•  Rating：12VDC 50mA
•  Travel：≥1.0 mm
•  Contact Resistance：50mΩ Max
•  Insulation Resistance：100MΩ min(250VDC)
•  Dielectric Strength：250VAC 50/60Hz FOR 1 min
•  Operating Force：≥200g
•  Electric Life：100,000 cycles
•  Operating Temperature Rang：-20℃ ~ + 70℃

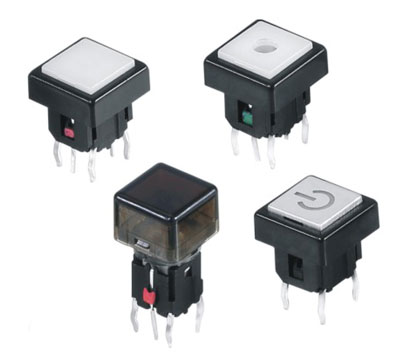

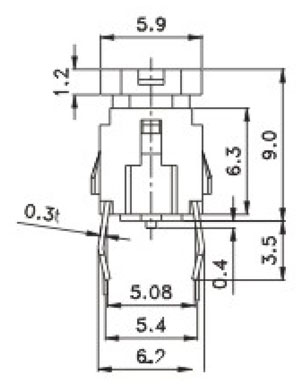

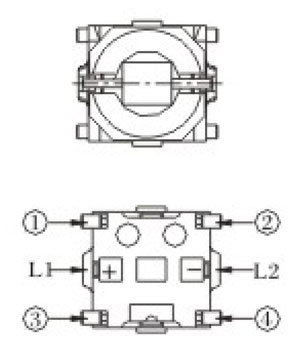

  帶燈輕觸開關R596B實拍圖    帶燈輕觸開關R596B結構圖          開關R596B結構圖          R596B結構圖



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Rang Travel PDF下載
R596-1L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596-1 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596-1ML(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596-1M 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1011L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1011 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-105L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-105 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1012L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1012 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1311L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1311 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1RL(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1R 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1011ML(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1011M 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1012ML(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
R596B-1012M 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暫無
